97-01 Honda CRV |
|
|
Radio Removal |
 |

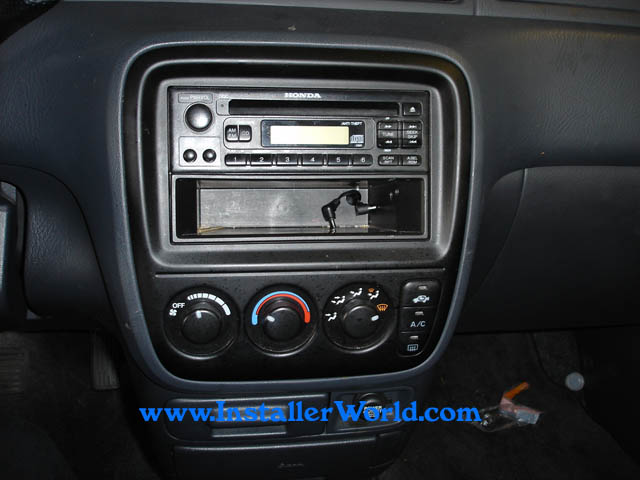

Layout of radio to be removed | |||
 |

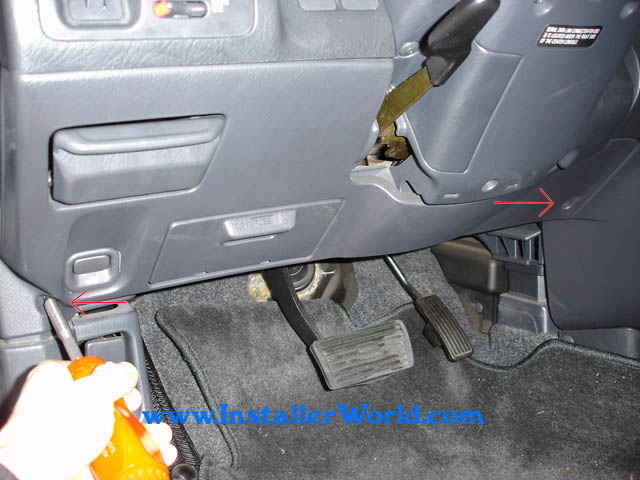

remove two Phillips screws and unclip dash | |||
 |

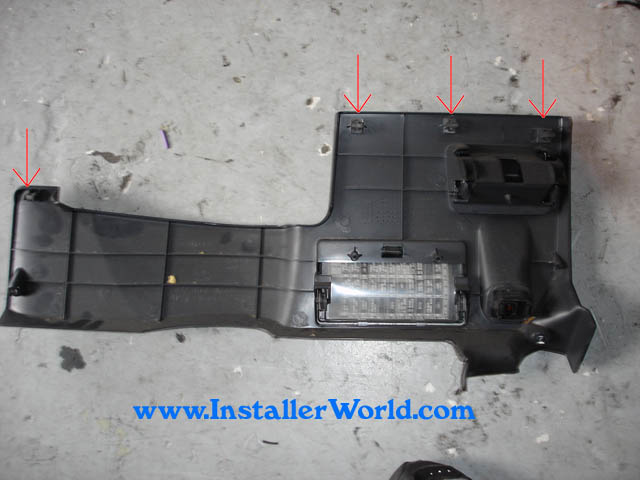

location of clips on the dash | |||
 |

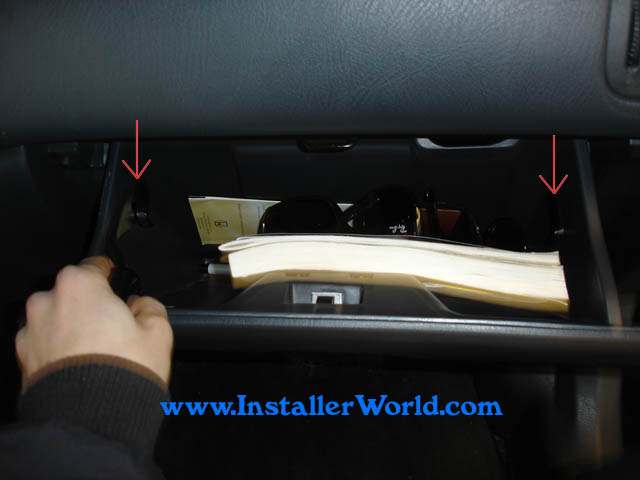

remove 2 glove box supports from inside the glove box using a panel removing tool or fingers, and the glove box will sag down | |||
 |

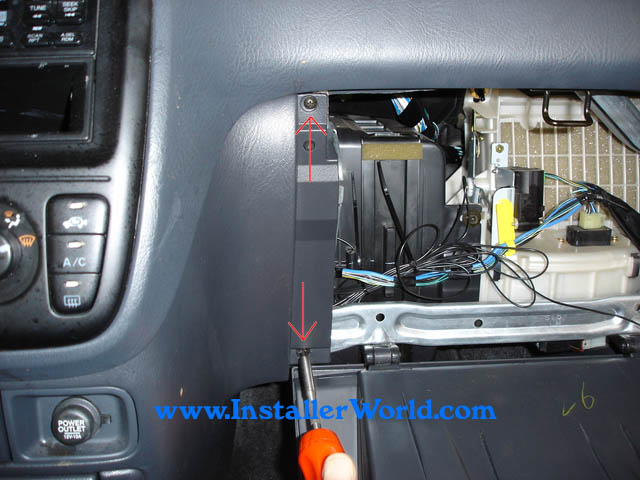

remove 2 Phillips screws from behind the glove box | |||
 |

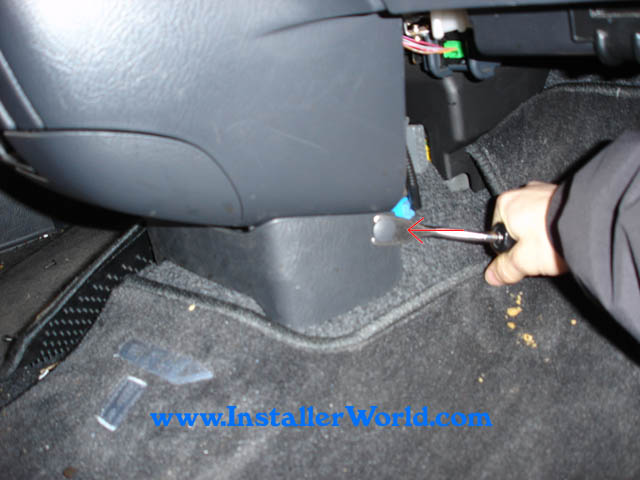

remove a clip from under the center pocket using panel removal tool and remove 1 from the other side as well. then unclip lower trim piece | |||
 |

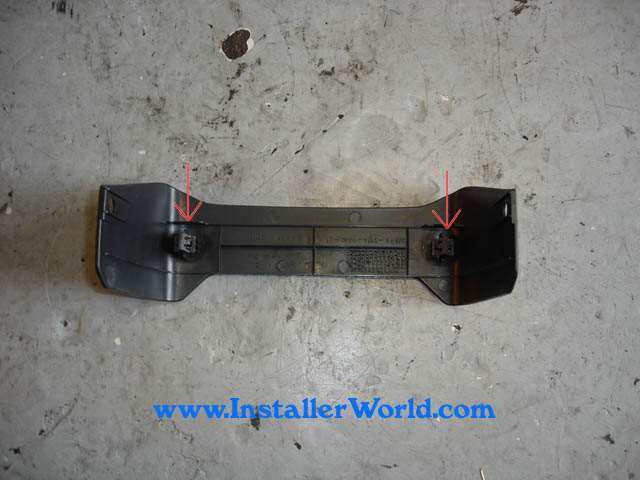

clip locations for the trim piece | |||
 |

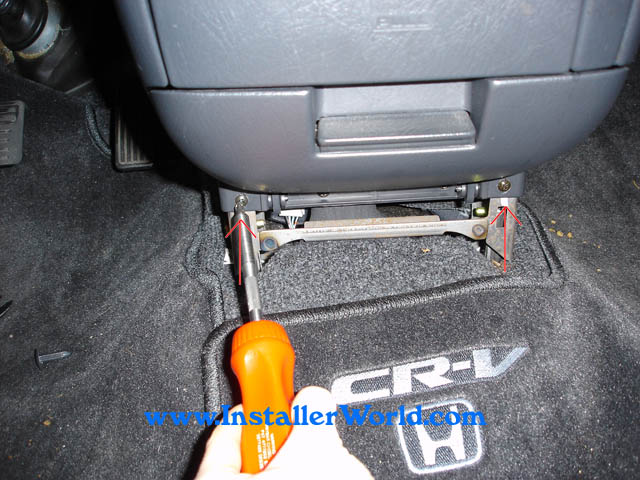

remove 2 exposed Phillips screws from under center pocket | |||
 |

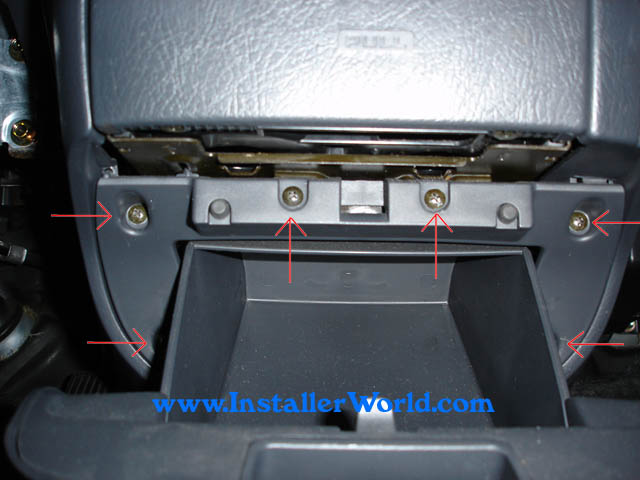

open center pocket and remove 6 exposed Phillips screws then unclip dash (containing; cup holder, center pocket, cigarette lighter) | |||
 |
locations of clips behind dash piece | |||
 |

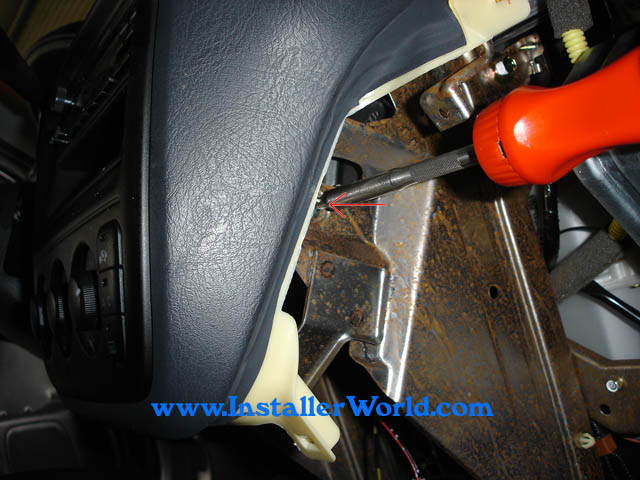

remove 1 8mm/Phillips screw from side of dash and 1 on the other side as well | |||
 |

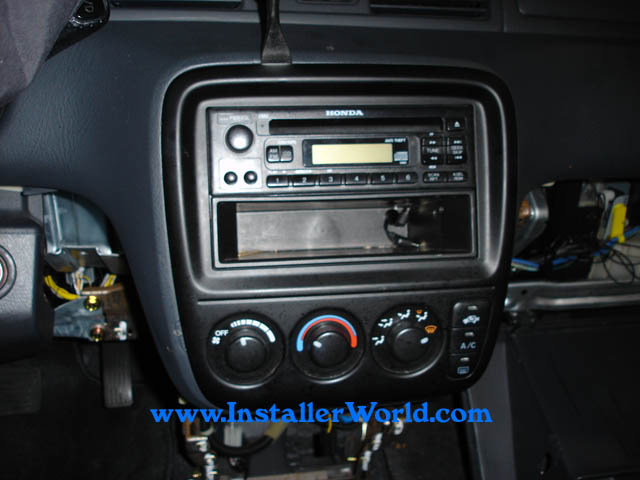

use a panel removal tool to gently pry off the entire dash piece and assist
in pushing it by hand from the rear of the radio Warning: The clips may be stiff so do no put too much pressure in one stop otherwise the marks may be permanent, instead go around the dash evenly to loosen up everything. |
|||
 |

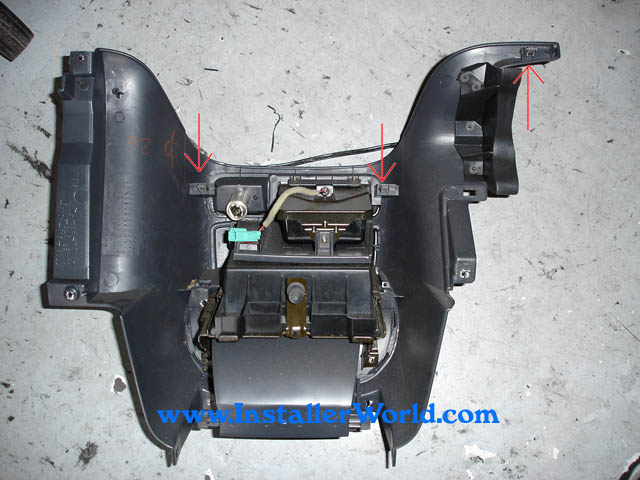

locations of the clips on the dash piece | |||
