96-99 Infiniti I30 |
|
|
Radio Removal |
 |

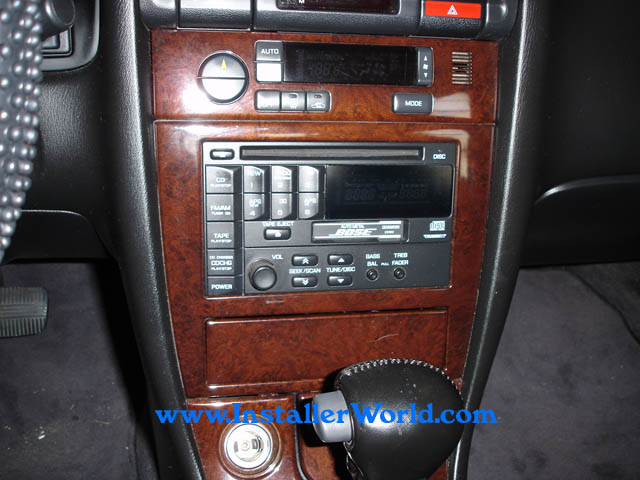

Layout of radio to be removed | |||
 |
insert panel removal tool an pry gently up | |||
 |

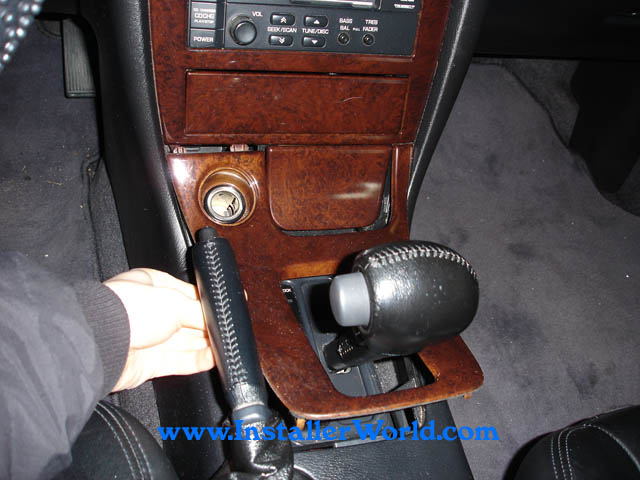

use your hands to pull piece down and outward | |||
 |

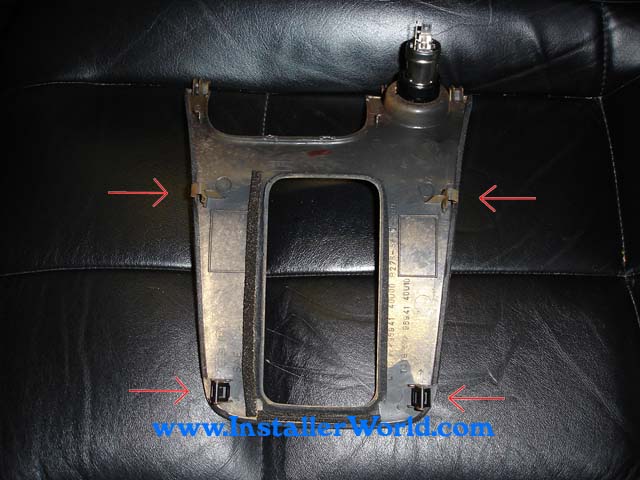

clip locations on shifter bezel | |||
 |

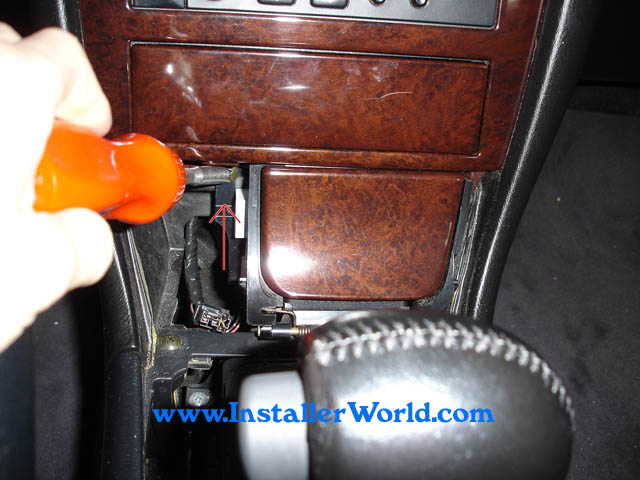

remove 1 Phillips screw | |||
 |

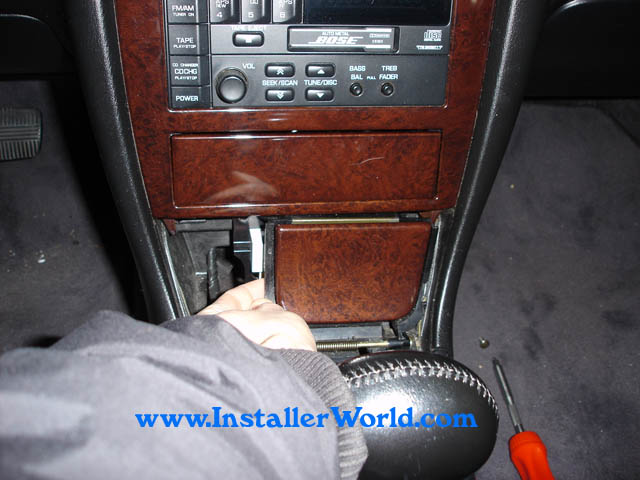

use hand or panel removal tool to pull the ash tray outward | |||
 |

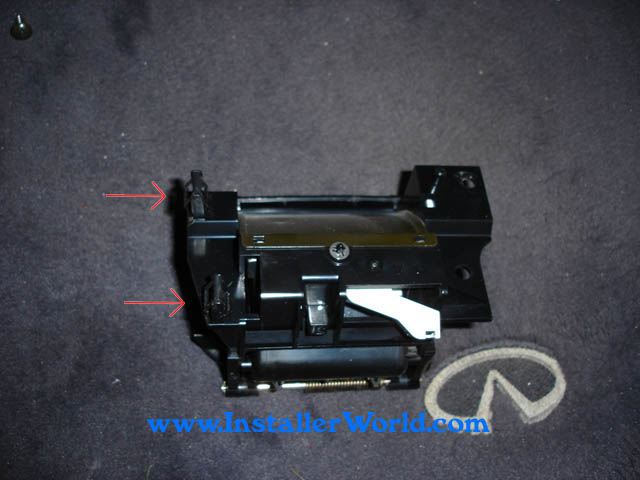

location of the clips on ash tray | |||
 |

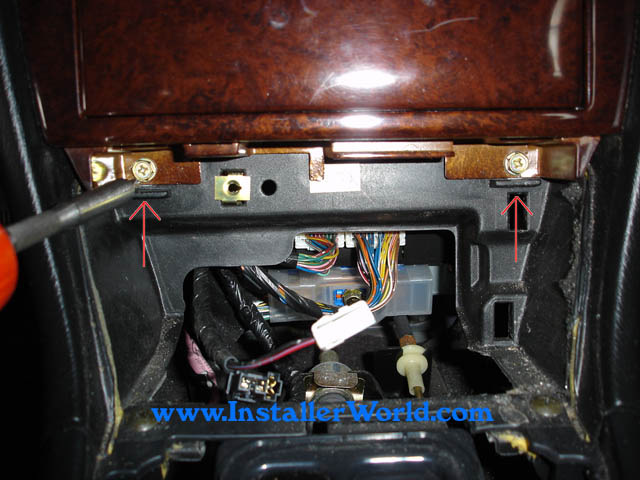

remove 2 8mm/Phillips screws | |||
 |

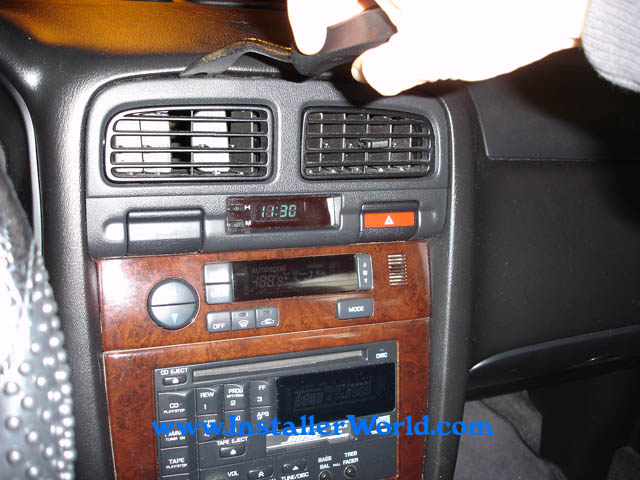

use panel removal tool to gently pry out the heater vents | |||
 |

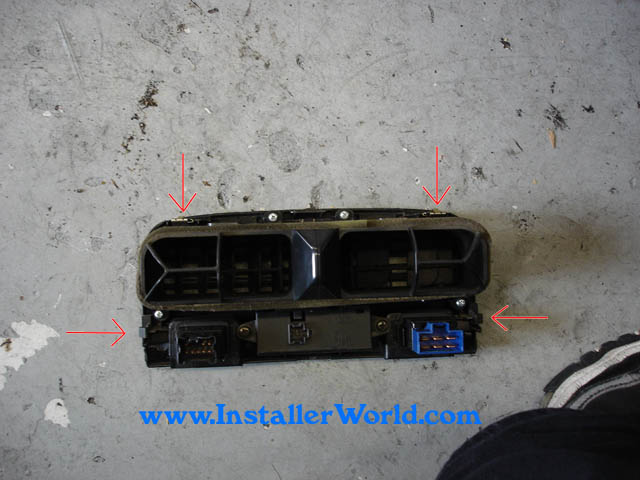

clip locations for heater vents | |||
 |

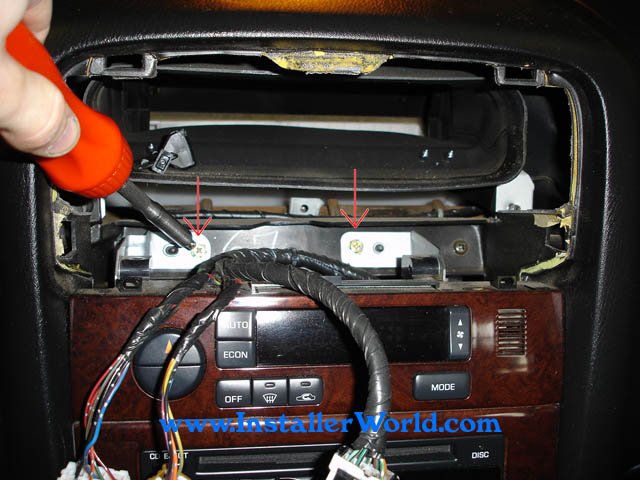

remove 2 8mm/Phillips screws | |||
 |

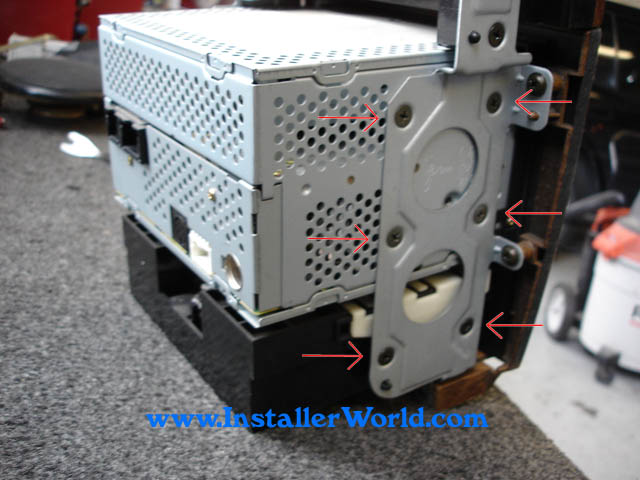

remove 6 Phillips
screws to remove radio Tip- Nissan and Infinity radio screws are usually torque on very tight be sure to use good screw driver to remove or it will strip and need to be drilled out. |
|||
