96-98 Honda Civic |
|
|
Radio Removal |
 |

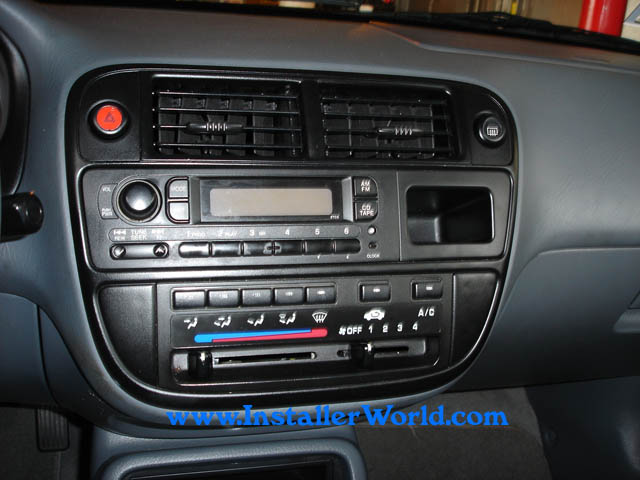

Layout of radio to be removed | |||
 |

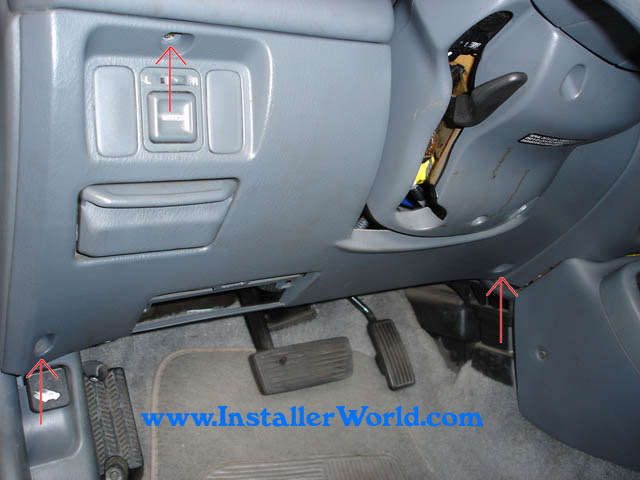

remove 3 Phillips screws and unclip dash | |||
 |

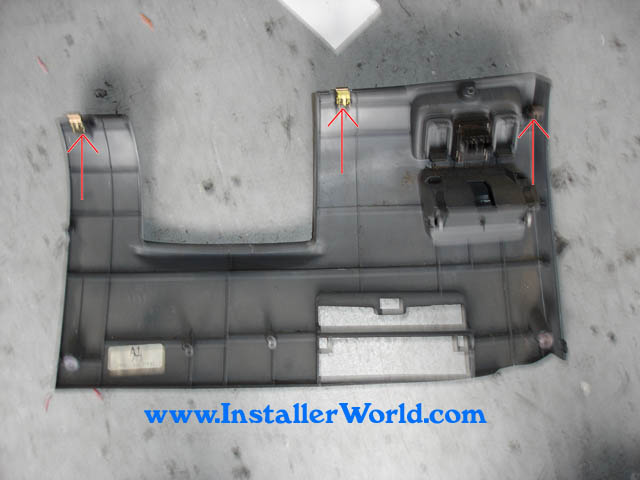

locations of clips on the lower dash | |||
 |

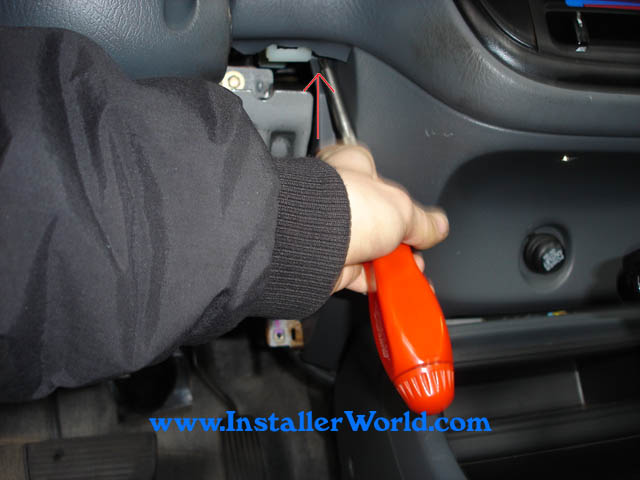

remove 1 Phillips screw from top portion of dash right of steering column | |||
 |

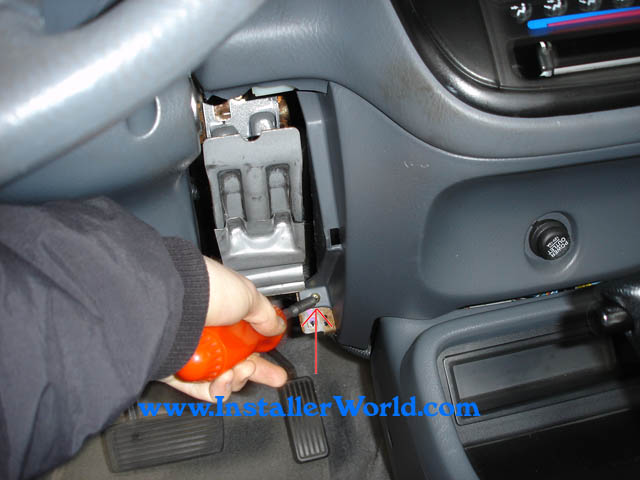

remove 1 Phillips screw from lower part of dash | |||
 |

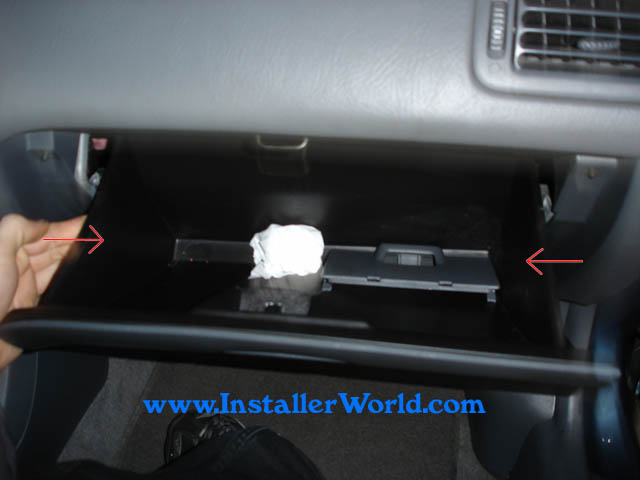

use hands to push in both sides of the glove box so that it comes out of it's guide and sags down. | |||
 |

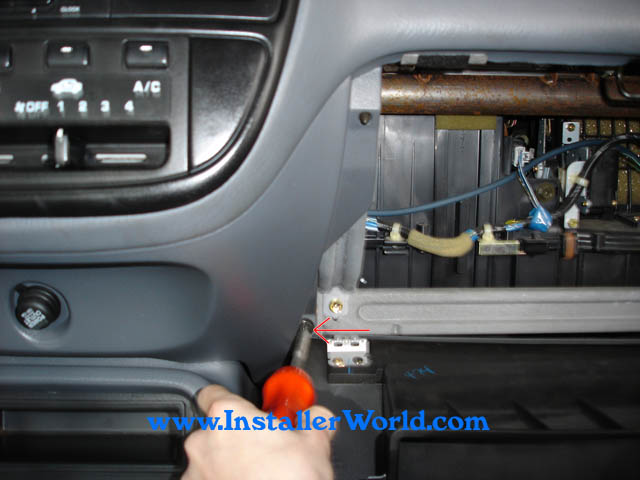

remove 1 8mm/Phillips screw from lower portion behind glove box | |||
 |

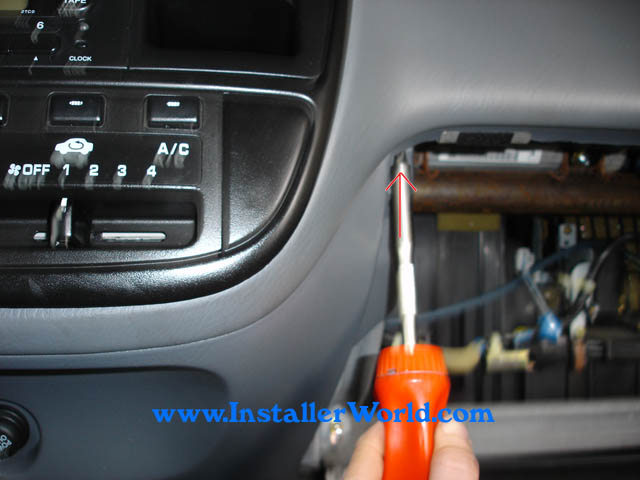

remove 1 8mm/Phillips screw from upper portion behind glove box | |||
 |

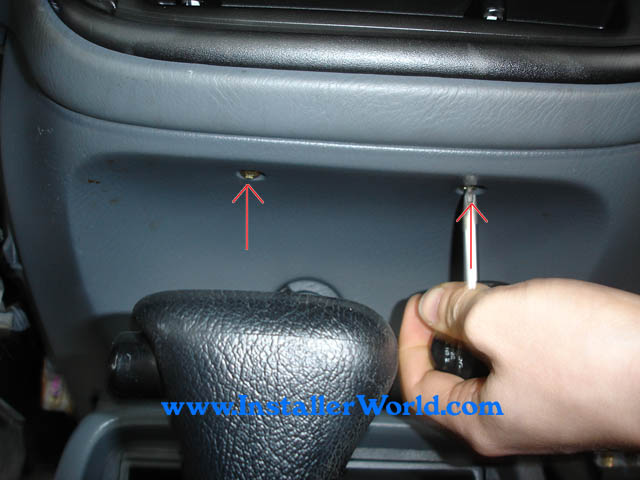

remove 2 Phillips screws from just above cigarette lighter | |||
 |

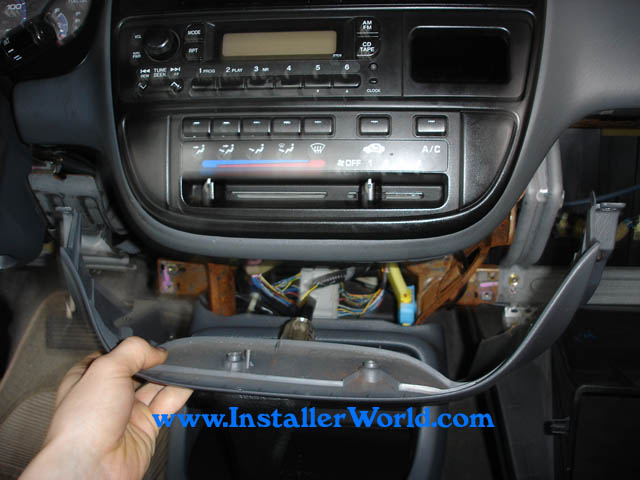

pull off dash piece and unclip lighter | |||
 |

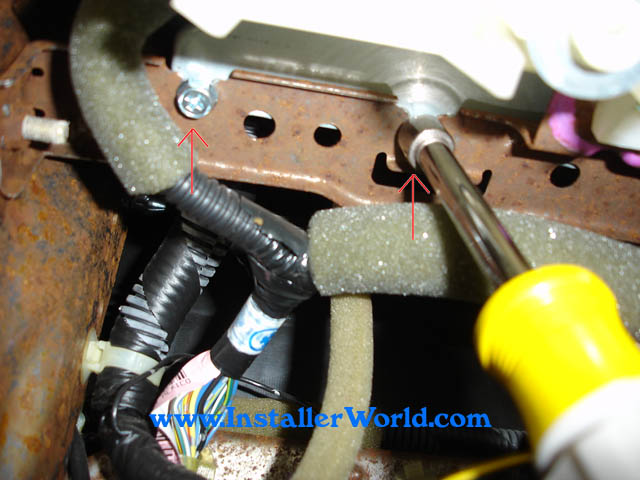

look under dash from where the last panel was removed and remove 2 8mm/Phillips screws | |||
 |

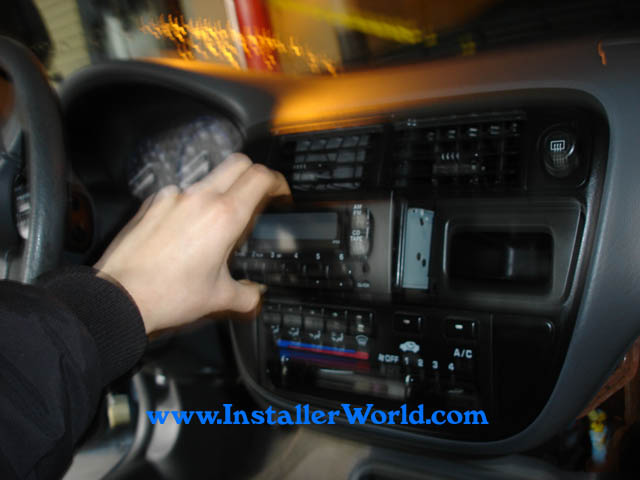

use hands to slide the radio out | |||
 |

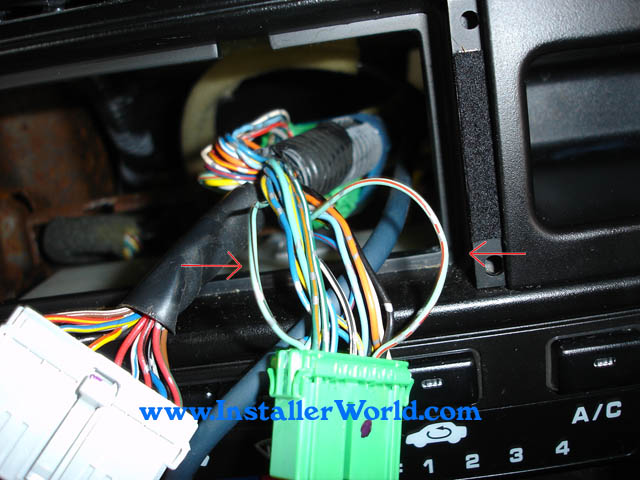

in order for dome light to work after new radio is installed lt.grn/red and
lt.grn/blk must be connected together. Important Note: If your car is equipt with factory keyless entry module the factory radio must be hooked up with special harness and hidden behind the dash upon replacing with aftermarket radio. |
|||
